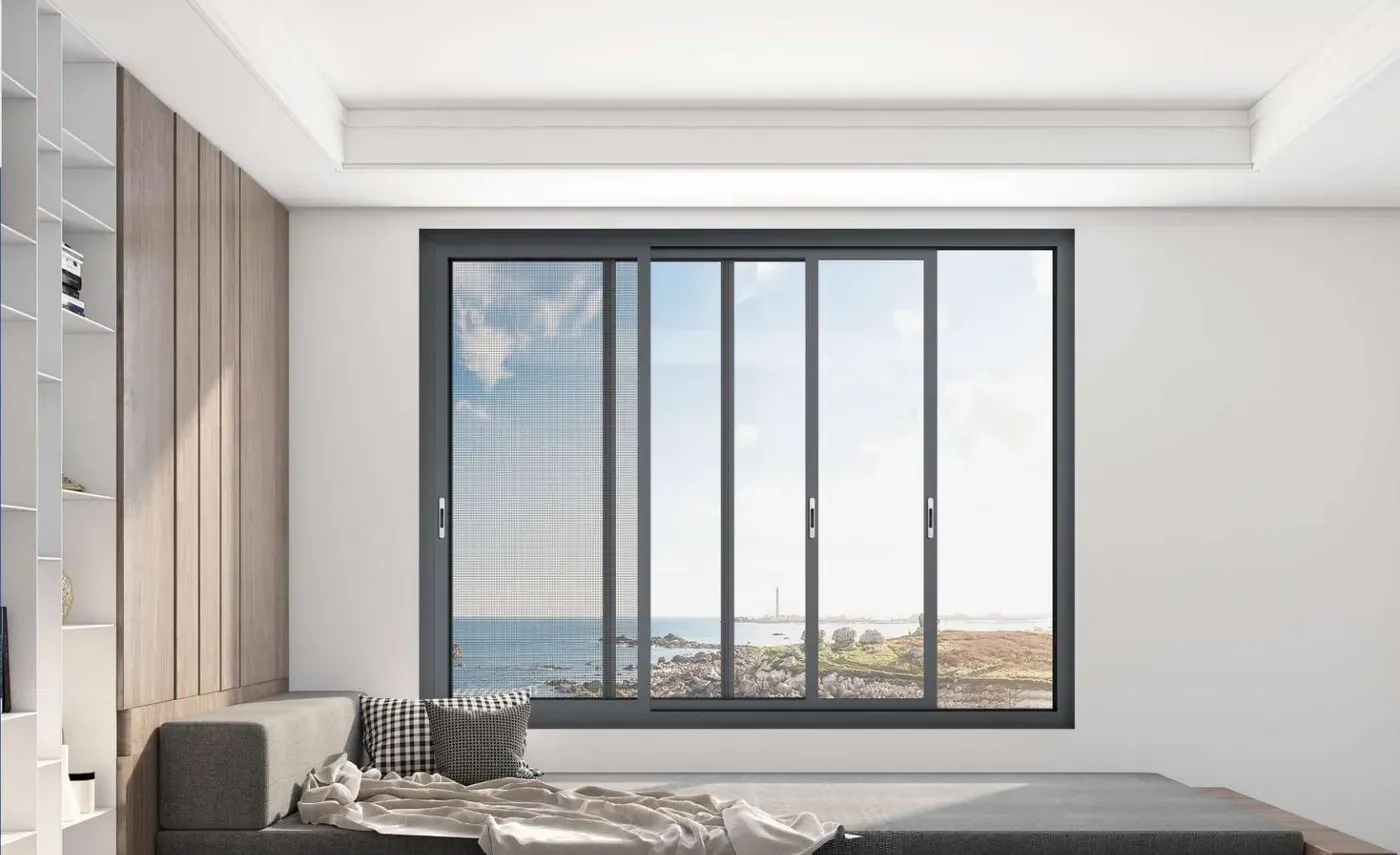

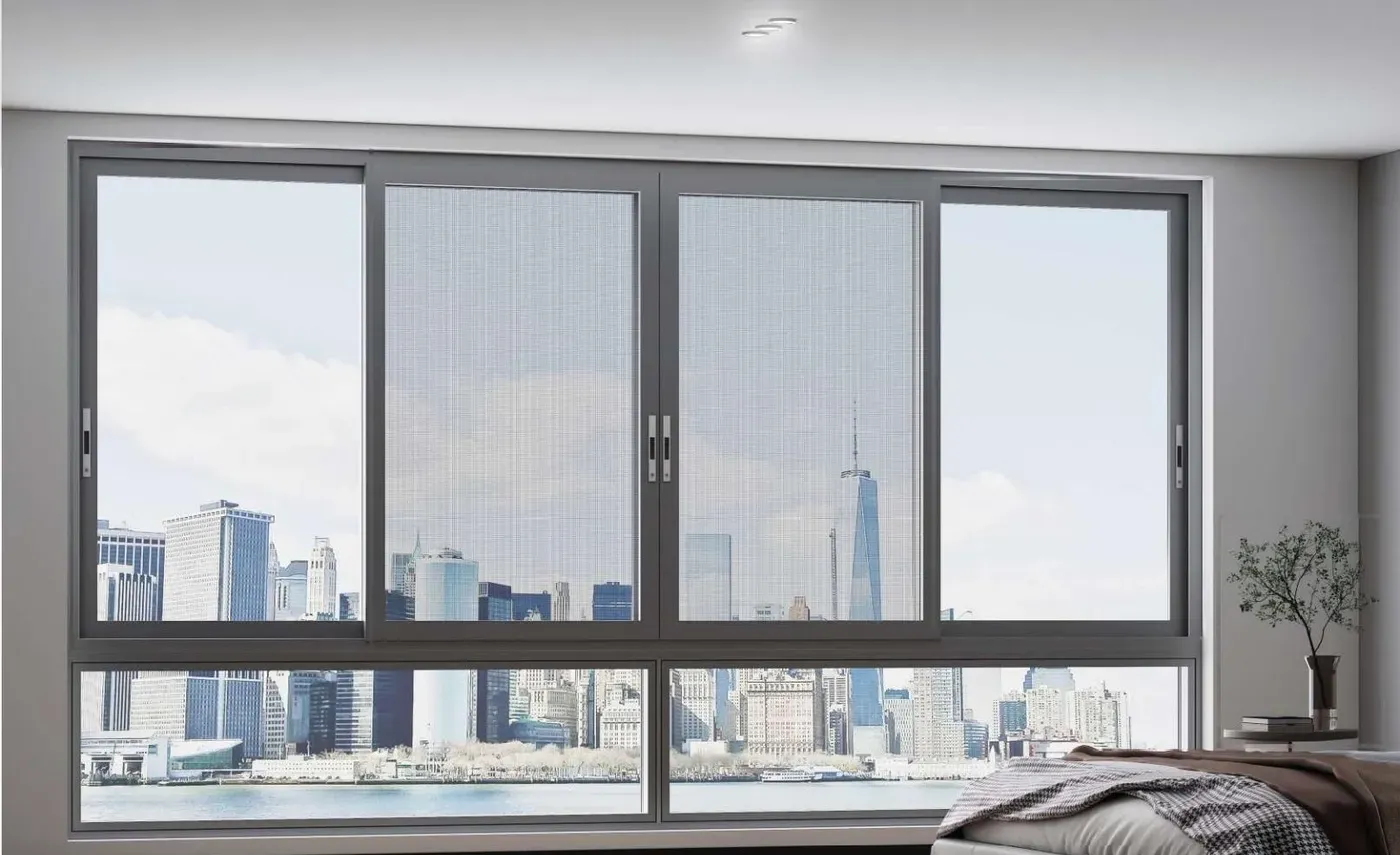

100 Three-Track Sliding Window
The 100 Three-Track Sliding Window is a standard (non-thermal) aluminium window with a 100 mm frame. A wide three-track slider for bedrooms and living rooms, with room for a flyscreen. On the factory's test figures it rates about Uw 2.2 W/m²K and Rw+C 25–30 dB. Made to your sizes and delivered to site anywhere in Australia; send your plans for a landed quote in 2 business days.
Specifications
| Frame depth | 100 mm / sash width: 66 mm |
|---|---|
| Aluminium | 6063-T5 aluminium extrusion |
| Wall thickness | 1.4 mm |
| Glazing | Double glazed toughened: 5 mm+9 air+5 mm Glass fan-shaped notch: 21 mm |
| Single layer glass | 5 mm |
| Positioning gap | 28 mm |
| Hardware | BAGO lock+HOPO lock point |
| Finish | Fluorocarbon (PVDF) metallic: coffee, graphite |
| Powder coat | White, stone grey, coffee, sand black; Australian colours such as Monument and Surfmist on request |
| Standards | AS 2047 (windows and doors), glass to AS 1288; BAL-rated glazing on request |
| Supply | Made to measure, delivered to site Australia-wide, supply only |
Questions
Is the 100 Three-Track Sliding Window thermally broken?
No, it is a standard aluminium frame (factory Uw about 2.2 W/m²K). It suits warmer climates, sheds, granny flats and budget jobs. For cooler climates or a tight energy rating, look at a thermally broken series.
What glass can it take?
Per the factory catalogue: Double glazed toughened: 5 mm+9 air+5 mm; Glass fan-shaped notch: 21 mm. Low-E, tinted, obscure and laminated glass are available, chosen to AS 1288 for the location.
What colours does it come in?
Powder coat in black, Monument, Surfmist white, Woodland Grey and other colours, plus metallic fluorocarbon (PVDF) and woodgrain finishes. All frames on one order come in the same colour batch.
How long does the 100 Three-Track Sliding Window take to arrive?
Usually 6 to 10 weeks from signed shop drawings to delivery on site, depending on the order and the port. We confirm the date with your quote.
