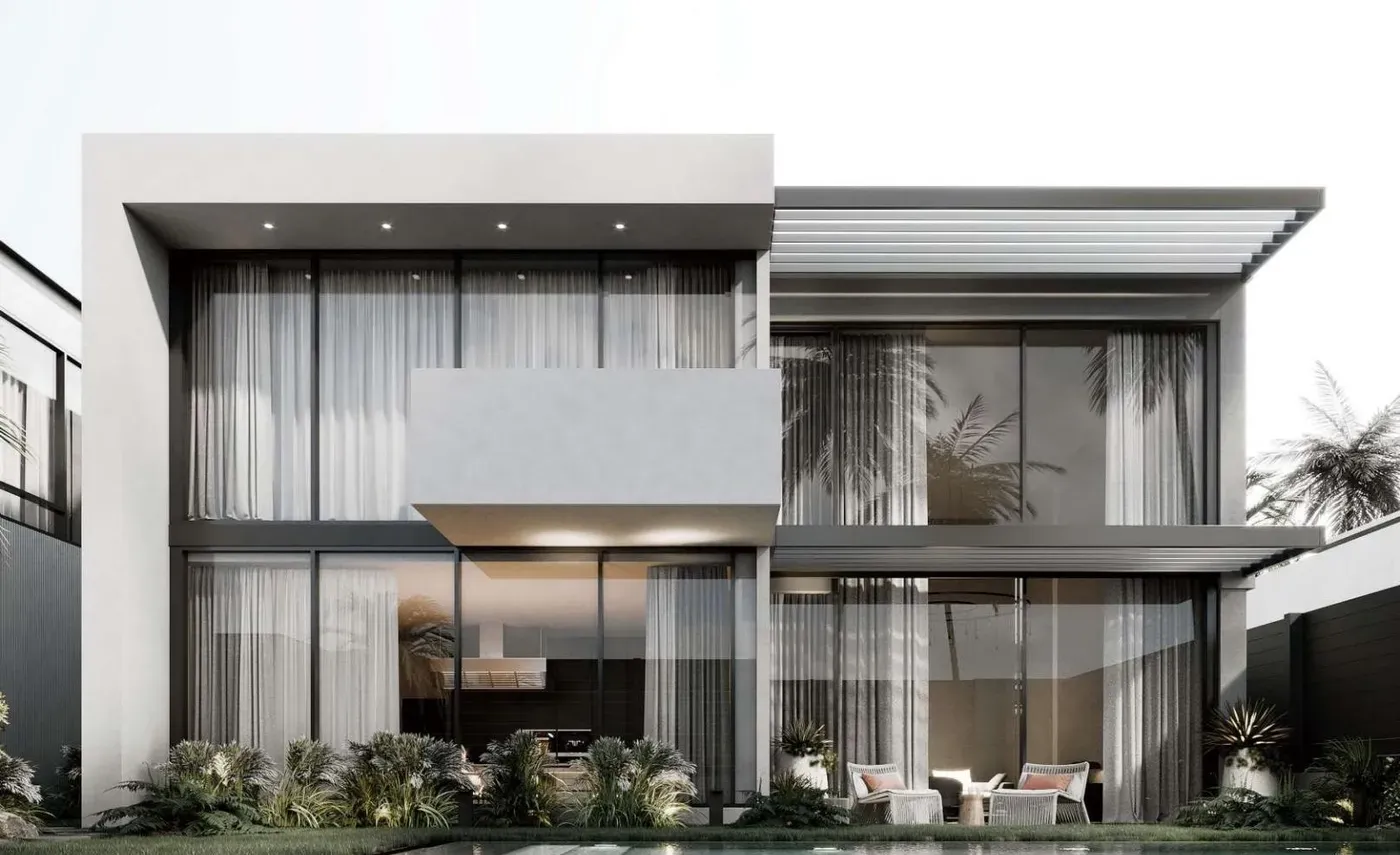

Extra-Large Fixed Window

The Extra-Large Fixed Window is a thermally broken aluminium window. Large fixed panes in the 100P, 116 or 120 frame for views, corner glazing and highlight windows. On the factory's test figures it rates about Uw 2.1 W/m²K and Rw+C 25–30 dB. Made to your sizes and delivered to site anywhere in Australia; send your plans for a landed quote in 2 business days.

Thermally brokenMade to measureAS 2047

Uw (heat loss)about 2.1 W/m²Klower is better

Sound (Rw+C)25–30 dBhigher is quieter

Water tightness600 Pahigher is better

Wind load4.0 kPahigher is stronger

Factory published test figures.

Add to my quote Full specs

Specifications

Frame dimensions	60, 70, 76, 93, 100, 110, 116, 120
Aluminium	6063-T5 aluminium extrusion
Wall thickness	1.4-2.0 with multiple options
Glazing	Double glazed toughened: 5 mm+15 air+5 mm Laminated double glazed: 5 mm+1.14 PVB+5 mm+12 air+5 mm Triple glazed: 5 mm+12 air+5 mm+12 air+5 mm Glass fan-shaped notch: Multiple choices
Positioning gap	multiple options
Finish	Fluorocarbon (PVDF) metallic: coffee, graphite
Powder coat	White, stone grey, coffee, sand black; Australian colours such as Monument and Surfmist on request
Standards	AS 2047 (windows and doors), glass to AS 1288; BAL-rated glazing on request
Supply	Made to measure, delivered to site Australia-wide, supply only

Questions

Is the Extra-Large Fixed Window thermally broken?

Yes. The frame has a polyamide thermal break between the inside and outside aluminium, which gives a factory Uw of about 2.1 W/m²K. That helps new homes meet the 7-star NCC energy rules and BASIX.

What glass can it take?

Per the factory catalogue: Double glazed toughened: 5 mm+15 air+5 mm; Laminated double glazed: 5 mm+1.14 PVB+5 mm+12 air+5 mm; Triple glazed: 5 mm+12 air+5 mm+12 air+5 mm; Glass fan-shaped notch: Multiple choices. Low-E, tinted, obscure and laminated glass are available, chosen to AS 1288 for the location.

What colours does it come in?

Powder coat in black, Monument, Surfmist white, Woodland Grey and other colours, plus metallic fluorocarbon (PVDF) and woodgrain finishes. All frames on one order come in the same colour batch.

How long does the Extra-Large Fixed Window take to arrive?

Usually 6 to 10 weeks from signed shop drawings to delivery on site, depending on the order and the port. We confirm the date with your quote.

Ask about the Extra-Large Fixed Window

Send sizes or plans and we price this series (and any others you need), delivered to site, within 2 business days.

Similar series

All windows →

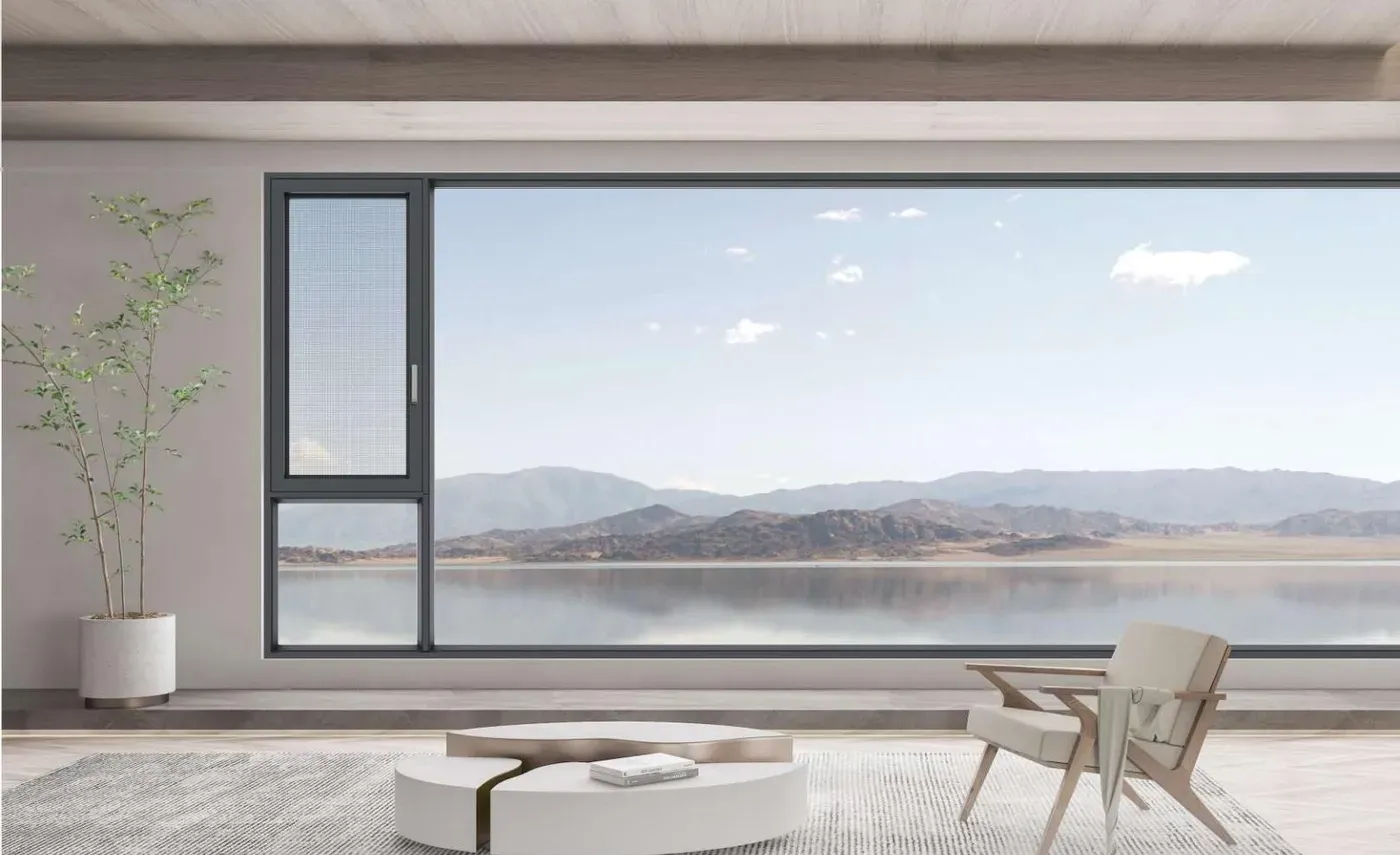

120 Narrow-Sash Casement WindowSlim 58.7 mm sash on a 120 mm thermally broken frame, for big panes with very little aluminium in view.Thermally broken · Uw 1.5 · 40–45 dB

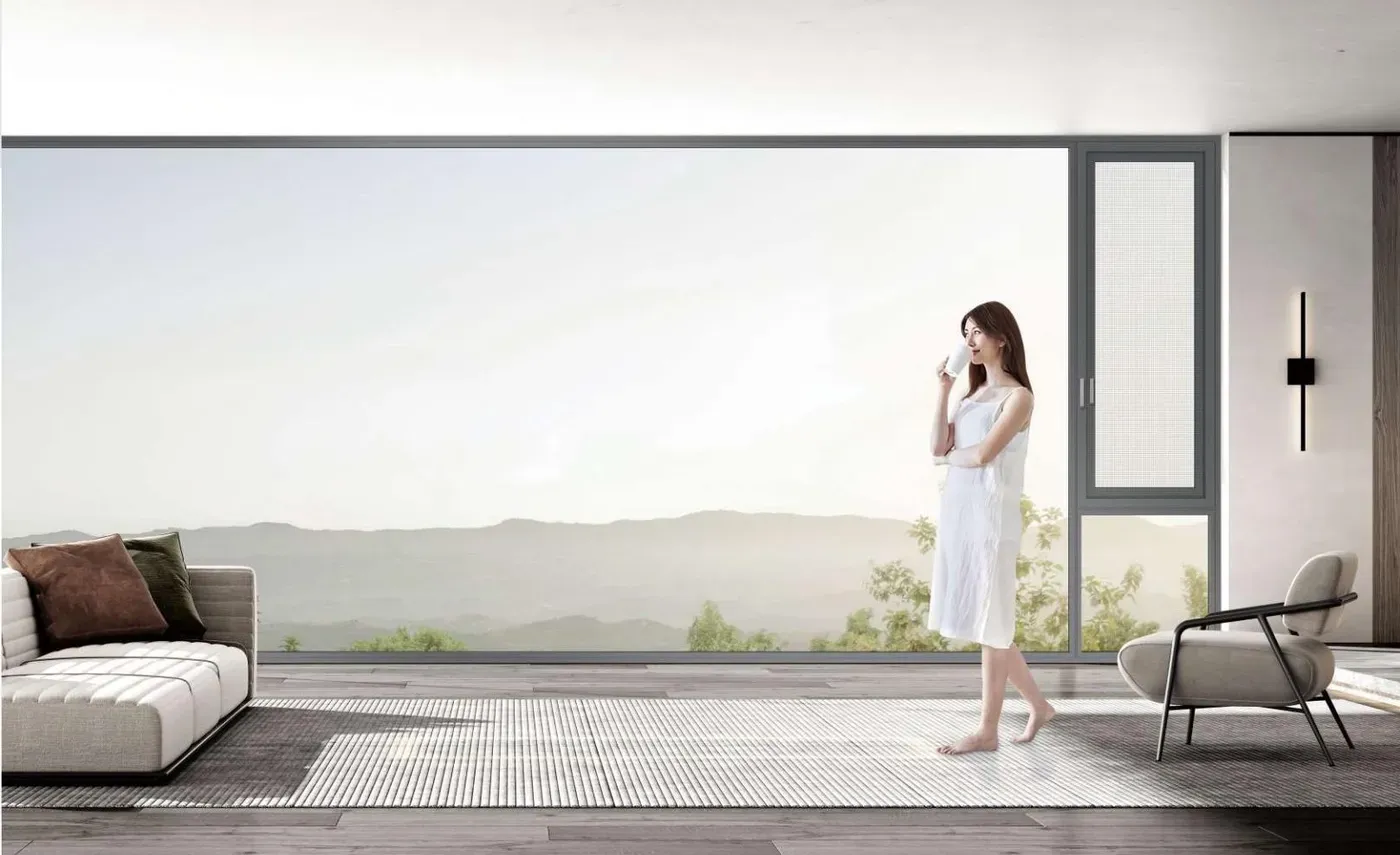

120 Narrow-Frame Thermally Broken CasementThe best-insulating casement in the range (Uw about 1.2), with a narrow frame and German hardware.Thermally broken · Uw 1.2 · 40–45 dB

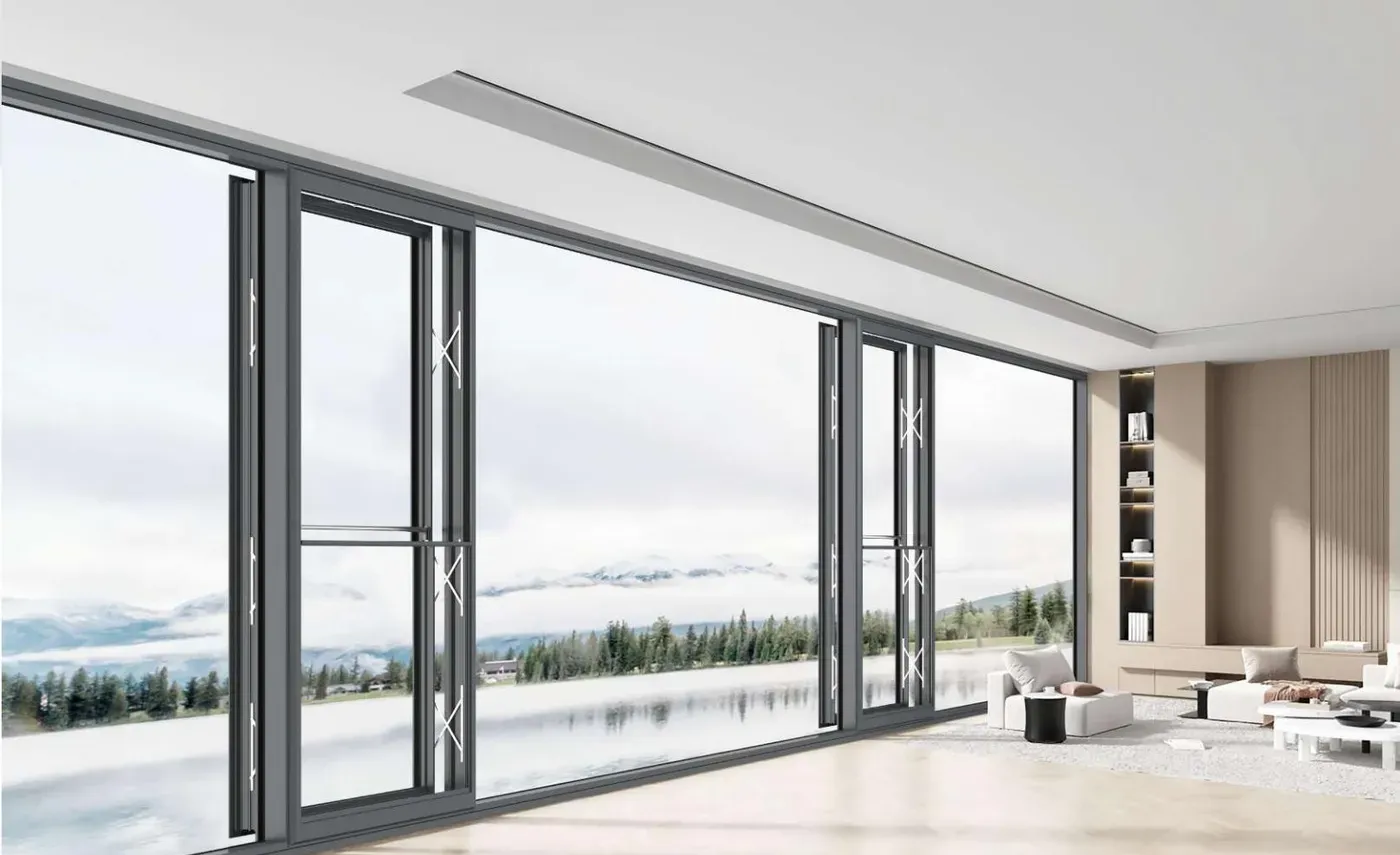

120 Motorised Horizontal Sliding WindowA heavy 120 mm sliding window you can open by hand or by motor, for wide openings and hard-to-reach spots.Thermally broken · Uw 1.2 · 40–45 dB
