93 High-Performance Energy Casement
The 93 High-Performance Energy Casement is a thermally broken aluminium window with a 93 mm frame. The top energy and weather performer in the catalogue, aimed at low-energy and passive-style homes. Made to your sizes and delivered to site anywhere in Australia; send your plans for a landed quote in 2 business days.
Specifications
| Frame depth | 93 mm |
|---|---|
| Aluminium | 60630-T6 aluminium extrusion |
| Wall thickness | 2.0 mm |
| Glazing | Double glazed toughened: 6 mm+27 air+6 mm Laminated double glazed: 6 mm+1.14 PVB+6 mm+12 air+6 mm Triple glazed: 6 mm+15 air+6 mm+15 air+6 mm Glass fan-shaped notch: 55 mm |
| Positioning gap | 55 mm |
| Hardware | German Weihag system hardware |
| Finish | Fluorocarbon (PVDF) metallic: coffee, graphite |
| Powder coat | White, stone grey, coffee, sand black; Australian colours such as Monument and Surfmist on request |
| Standards | AS 2047 (windows and doors), glass to AS 1288; BAL-rated glazing on request |
| Supply | Made to measure, delivered to site Australia-wide, supply only |
Questions
Is the 93 High-Performance Energy Casement thermally broken?

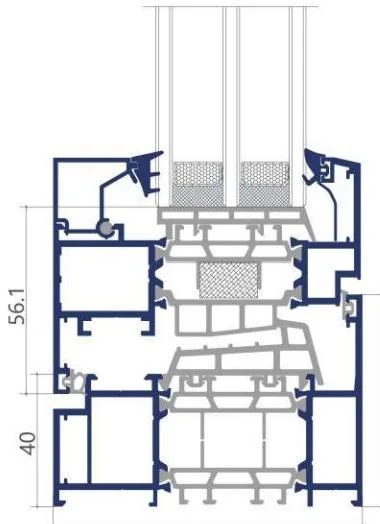

Yes. The frame has a polyamide thermal break between the inside and outside aluminium. That helps new homes meet the 7-star NCC energy rules and BASIX.
What glass can it take?
Per the factory catalogue: Double glazed toughened: 6 mm+27 air+6 mm; Laminated double glazed: 6 mm+1.14 PVB+6 mm+12 air+6 mm; Triple glazed: 6 mm+15 air+6 mm+15 air+6 mm; Glass fan-shaped notch: 55 mm. Low-E, tinted, obscure and laminated glass are available, chosen to AS 1288 for the location.
What colours does it come in?
Powder coat in black, Monument, Surfmist white, Woodland Grey and other colours, plus metallic fluorocarbon (PVDF) and woodgrain finishes. All frames on one order come in the same colour batch.
How long does the 93 High-Performance Energy Casement take to arrive?
Usually 6 to 10 weeks from signed shop drawings to delivery on site, depending on the order and the port. We confirm the date with your quote.
Ask about the 93 High-Performance Energy Casement
Send sizes or plans and we price this series (and any others you need), delivered to site, within 2 business days.
