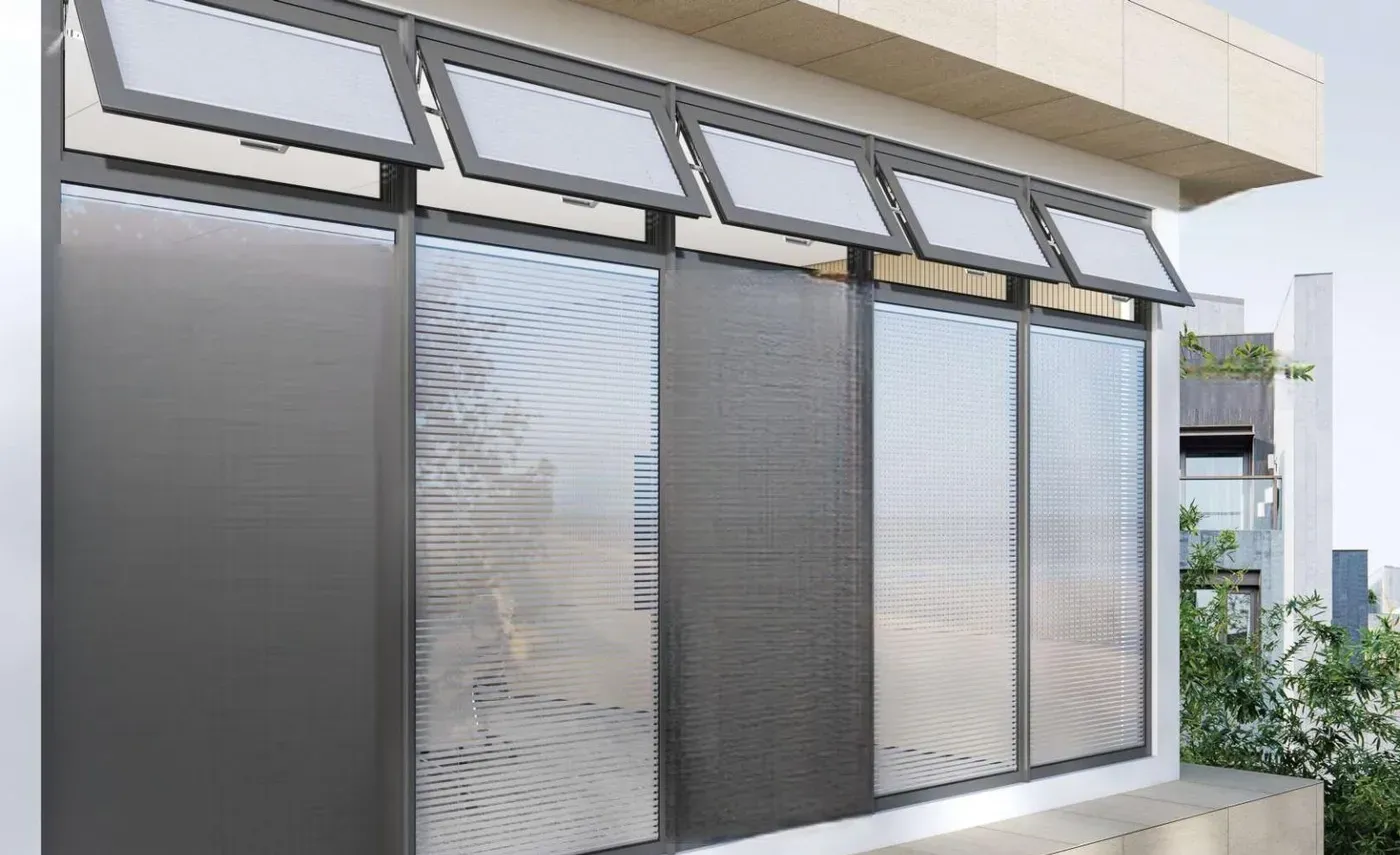

60 Thermally Broken Casement Window
The 60 Thermally Broken Casement Window is a thermally broken aluminium window with a 60 mm frame. A slim 60 mm thermally broken casement that fits standard wall frames and budgets. On the factory's test figures it rates about Uw 1.8 W/m²K and Rw+C 30–35 dB. Made to your sizes and delivered to site anywhere in Australia; send your plans for a landed quote in 2 business days.
Specifications

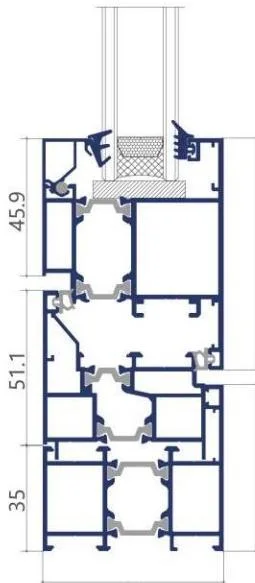

| Frame depth | 60 mm |
|---|---|
| Aluminium | 6063-T5 aluminium extrusion |
| Wall thickness | 1.6 mm |
| Glazing | Double glazed toughened: 5 mm+ 15 air + 5 mm Laminated double glazed: 5 mm+1.14 PVB+5 mm+12 air+5 mm Triple glazed: 5 mm+6 air+5 mm+6 air+5 mm Glass fan-shaped notch: 30 mm |
| Positioning gap | 30 mm |
| Hardware | CMECH system hardware from the United States |
| Finish | Fluorocarbon (PVDF) metallic: coffee, graphite |
| Powder coat | White, stone grey, coffee, sand black; Australian colours such as Monument and Surfmist on request |
| Standards | AS 2047 (windows and doors), glass to AS 1288; BAL-rated glazing on request |
| Supply | Made to measure, delivered to site Australia-wide, supply only |
Questions
Is the 60 Thermally Broken Casement Window thermally broken?
Yes. The frame has a polyamide thermal break between the inside and outside aluminium, which gives a factory Uw of about 1.8 W/m²K. That helps new homes meet the 7-star NCC energy rules and BASIX.
What glass can it take?
Per the factory catalogue: Double glazed toughened: 5 mm+ 15 air + 5 mm; Laminated double glazed: 5 mm+1.14 PVB+5 mm+12 air+5 mm; Triple glazed: 5 mm+6 air+5 mm+6 air+5 mm; Glass fan-shaped notch: 30 mm. Low-E, tinted, obscure and laminated glass are available, chosen to AS 1288 for the location.
What colours does it come in?
Powder coat in black, Monument, Surfmist white, Woodland Grey and other colours, plus metallic fluorocarbon (PVDF) and woodgrain finishes. All frames on one order come in the same colour batch.
How long does the 60 Thermally Broken Casement Window take to arrive?
Usually 6 to 10 weeks from signed shop drawings to delivery on site, depending on the order and the port. We confirm the date with your quote.
Ask about the 60 Thermally Broken Casement Window
Send sizes or plans and we price this series (and any others you need), delivered to site, within 2 business days.
