45 Casement Window (Non-Thermal)
The 45 Casement Window (Non-Thermal) is a standard (non-thermal) aluminium window with a 45 mm frame. An entry-level 45 mm casement for sheds, granny flats, garages and warmer climates. On the factory's test figures it rates about Uw 2.1 W/m²K and Rw+C 25–30 dB. Made to your sizes and delivered to site anywhere in Australia; send your plans for a landed quote in 2 business days.
Specifications

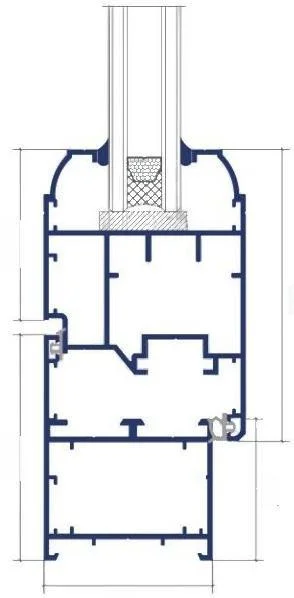

| Frame depth | 45 mm |
|---|---|
| Aluminium | 6063-T5 Primary aluminium |
| Wall thickness | 1.4 mm |
| Glazing | Double glazed toughened: Single glass: 5 mm transparent and tempered Glass fan notch: 25 mm |
| Double hollow | 5 mm transparent tempered+9A+5 mm transparent tempered |
| Laminated glass | 5 mm transparent tempered+0.76PVB+5 mm transparent tempered |
| Fixed position notch | 25 mm |
| Hardware | America CMECH System hardware |
| Finish | Fluorocarbon Coating Dark Grey, Coffee Browr |
| Powder coat | White, stone grey, coffee, sand black; Australian colours such as Monument and Surfmist on request |
| Standards | AS 2047 (windows and doors), glass to AS 1288; BAL-rated glazing on request |
| Supply | Made to measure, delivered to site Australia-wide, supply only |
Questions
Is the 45 Casement Window (Non-Thermal) thermally broken?
No, it is a standard aluminium frame (factory Uw about 2.1 W/m²K). It suits warmer climates, sheds, granny flats and budget jobs. For cooler climates or a tight energy rating, look at a thermally broken series.
What glass can it take?
Per the factory catalogue: Double glazed toughened: Single glass: 5 mm transparent and tempered; Glass fan notch: 25 mm. Low-E, tinted, obscure and laminated glass are available, chosen to AS 1288 for the location.
What colours does it come in?
Powder coat in black, Monument, Surfmist white, Woodland Grey and other colours, plus metallic fluorocarbon (PVDF) and woodgrain finishes. All frames on one order come in the same colour batch.
How long does the 45 Casement Window (Non-Thermal) take to arrive?
Usually 6 to 10 weeks from signed shop drawings to delivery on site, depending on the order and the port. We confirm the date with your quote.
Ask about the 45 Casement Window (Non-Thermal)
Send sizes or plans and we price this series (and any others you need), delivered to site, within 2 business days.
