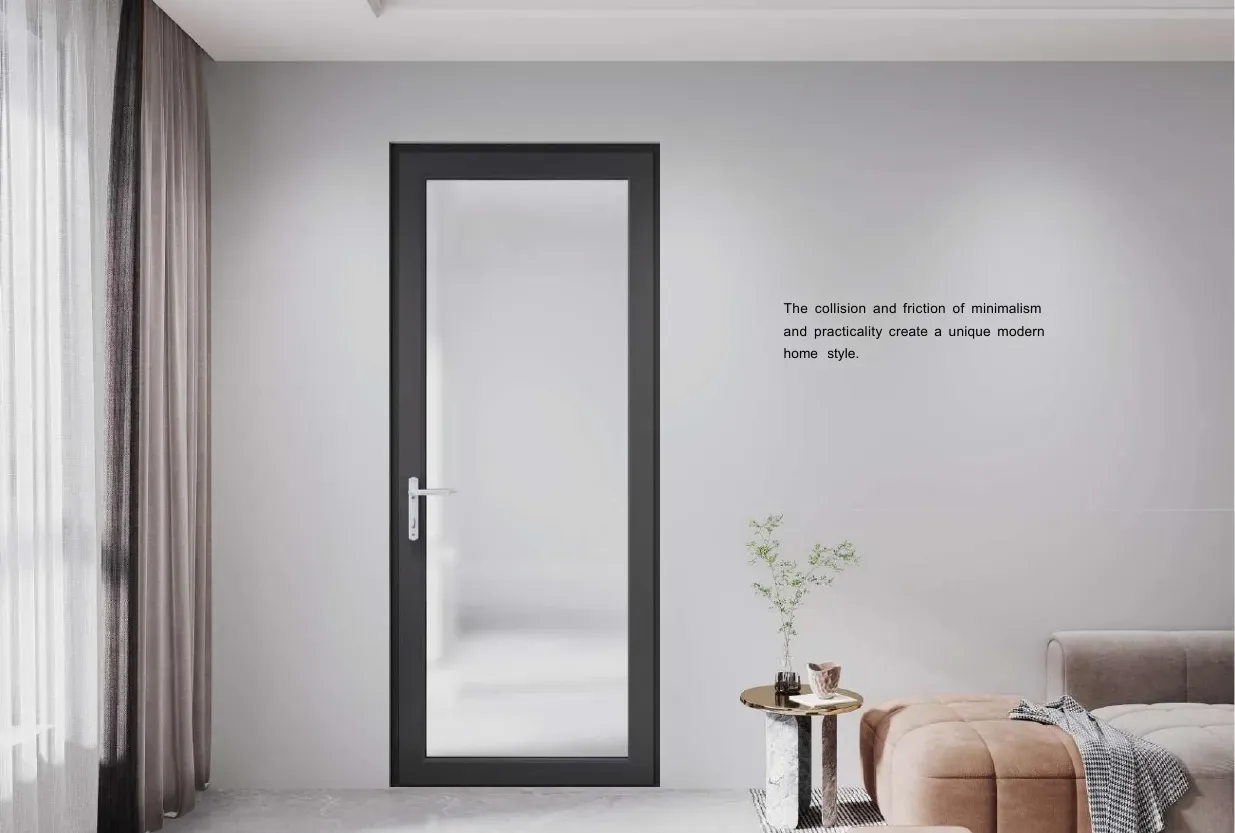

45 Hinged Door
The 45 Hinged Door is a standard (non-thermal) aluminium door with a 45 mm frame. A light 45 mm hinged glass door for laundries, side access and internal use. On the factory's test figures it rates about Uw 2.2 W/m²K and Rw+C 25–30 dB. Made to your sizes and delivered to site anywhere in Australia; send your plans for a landed quote in 2 business days.
Specifications

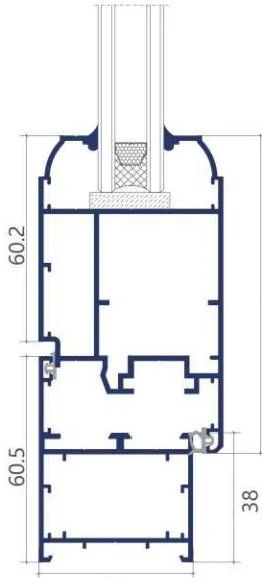

| Frame depth | 45 mm |
|---|---|
| Aluminium | 6063-T5 aluminium extrusion |
| Wall thickness | 1.5 mm |
| Glazing | Double glazed toughened: 5 mm+ 15 air + 5 mm |
| Track | High track, low track |
| Single layer glass | 5 mm |
| Glass rebate | 30 mm |
| Hardware | HOPO lock+CMECH handle |
| Finish | Fluorocarbon (PVDF) metallic: coffee, graphite |
| Standards | AS 2047 (windows and doors), glass to AS 1288; BAL-rated glazing on request |
| Supply | Made to measure, delivered to site Australia-wide, supply only |
Questions
Is the 45 Hinged Door thermally broken?
No, it is a standard aluminium frame (factory Uw about 2.2 W/m²K). It suits warmer climates, sheds, granny flats and budget jobs. For cooler climates or a tight energy rating, look at a thermally broken series.
What glass can it take?
Per the factory catalogue: Double glazed toughened: 5 mm+ 15 air + 5 mm. Low-E, tinted, obscure and laminated glass are available, chosen to AS 1288 for the location.
What colours does it come in?
Powder coat in black, Monument, Surfmist white, Woodland Grey and other colours, plus metallic fluorocarbon (PVDF) and woodgrain finishes. All frames on one order come in the same colour batch.
How long does the 45 Hinged Door take to arrive?
Usually 6 to 10 weeks from signed shop drawings to delivery on site, depending on the order and the port. We confirm the date with your quote.
Ask about the 45 Hinged Door
Send sizes or plans and we price this series (and any others you need), delivered to site, within 2 business days.
