108 Floor-Spring Double Door

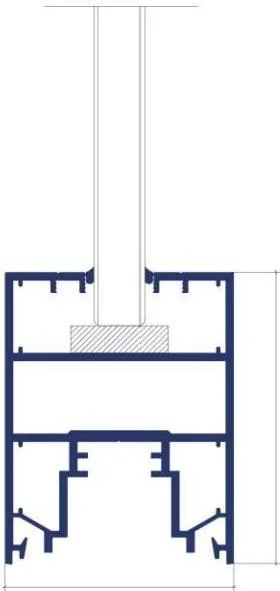

The 108 Floor-Spring Double Door is a standard (non-thermal) aluminium door with a 108 mm frame. Double doors on floor springs that swing both ways, for shop and building entries. On the factory's test figures it rates about Uw 1.8 W/m²K and Rw+C 25–25 dB. Made to your sizes and delivered to site anywhere in Australia; send your plans for a landed quote in 2 business days.
Specifications
| Frame depth | 108 mm |
|---|---|
| Aluminium | 6063-T5 aluminium extrusion |
| Wall thickness | 1.6 mm |
| Glazing | Double glazed toughened: 5 mm+21 air+5 mm Laminated double glazed: 5 mm+1.14 PVB+5 mm+12 air+5 mm Triple glazed: 5 mm+12 air+5 mm+12 air+5 mm |
| Note | Slot thickness;40mm |
| Hardware | CMEMCH system hardware from the United States |
| Finish | Fluorocarbon (PVDF) metallic: coffee, graphite |
| Powder coat | White, stone grey, coffee, sand black; Australian colours such as Monument and Surfmist on request |
| Standards | AS 2047 (windows and doors), glass to AS 1288; BAL-rated glazing on request |
| Supply | Made to measure, delivered to site Australia-wide, supply only |
Questions
Is the 108 Floor-Spring Double Door thermally broken?
No, it is a standard aluminium frame (factory Uw about 1.8 W/m²K). It suits warmer climates, sheds, granny flats and budget jobs. For cooler climates or a tight energy rating, look at a thermally broken series.
What glass can it take?
Per the factory catalogue: Double glazed toughened: 5 mm+21 air+5 mm; Laminated double glazed: 5 mm+1.14 PVB+5 mm+12 air+5 mm; Triple glazed: 5 mm+12 air+5 mm+12 air+5 mm. Low-E, tinted, obscure and laminated glass are available, chosen to AS 1288 for the location.
What colours does it come in?
Powder coat in black, Monument, Surfmist white, Woodland Grey and other colours, plus metallic fluorocarbon (PVDF) and woodgrain finishes. All frames on one order come in the same colour batch.
How long does the 108 Floor-Spring Double Door take to arrive?
Usually 6 to 10 weeks from signed shop drawings to delivery on site, depending on the order and the port. We confirm the date with your quote.
Ask about the 108 Floor-Spring Double Door
Send sizes or plans and we price this series (and any others you need), delivered to site, within 2 business days.
